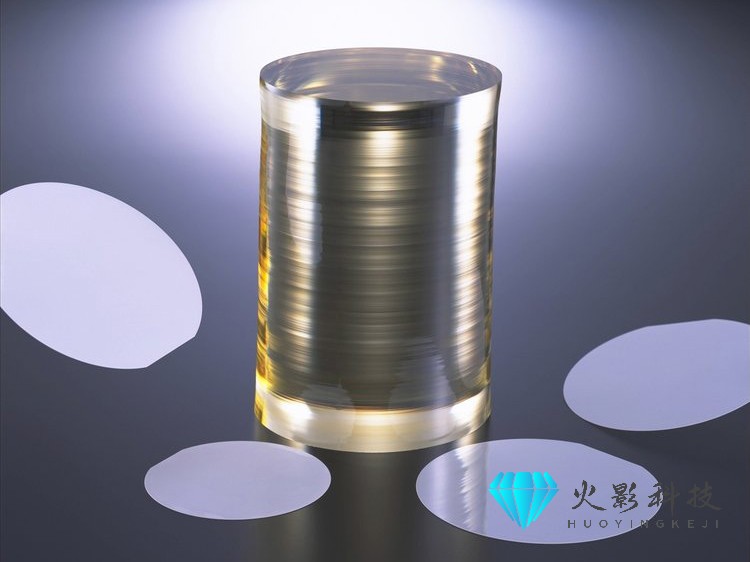

铌酸锂单晶/铌酸锂晶体

铌酸锂具有良好的非线性光学性质，可用作光波导材料，或用于制作中低频声表滤波器、大功率耐高温超声换能器等。铌酸锂掺杂技术如今被广泛应用。Mg:LN提高抗激光损伤阈值，优化在非线性光学领域的应用；Nd:Mg:LN晶体可实现自倍频效应；Fe:LN晶体可用于光学体全息存储。

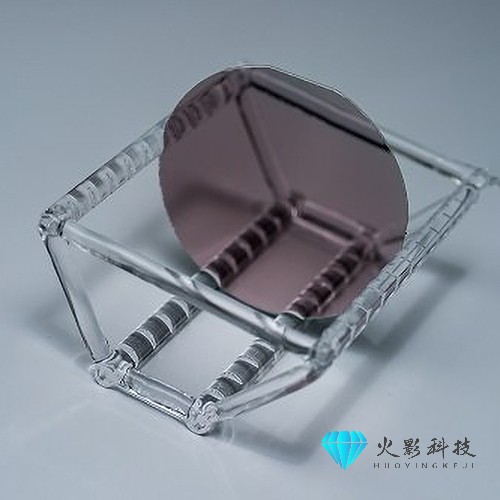

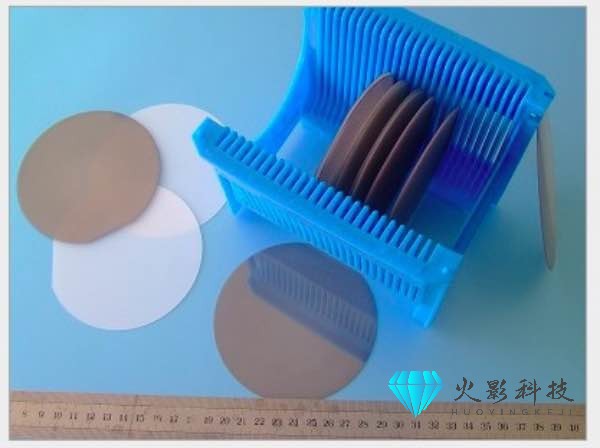

铌酸锂 / 钽酸锂晶片

Lithium Niobate / Lithium Tantalae Wafers

铌酸锂具有良好的非线性光学性质，可用作光波导材料，或用于制作中低频声表滤波器、大功率耐高温超声换能器等。铌酸锂掺杂技术如今被广泛应用。Mg:LN 提高抗激光损伤阈值，优化在非线性光学领域的应用；Nd:Mg:LN 晶体可实现自倍频效应；Fe:LN 晶体可用于光学体全息存储。钽酸锂具有优良的压电、铁电、声光及电光效应，广泛用于谐振器、滤波器、换能器等电子通讯器件，及高频声表面波器件。

Lithium Niobate has good nonlinear optical properties and can be used as optical waveguide material, or to produce medium and low frequency SAW filter, high power high temperature resistant ultrasonic transducer, etc. Lithium niobate doping is now widely used, such as Mg:LN, Nd:Mg:LN, Fe:LN. Lithium Tantalate has good piezoelectric, ferroelectric, acousto-optic and electro-optic effects. It is widely used in resonators, filters, transducers, as well as high-frequency surface acoustic wave devices.

材料特性 Material Characteristics

Material 材料	3" 4" 6" 8" LN wafer Saw/Optical grade 铌酸锂晶片（声表级/光学级）	3" 4" 6" LT wafer Saw/Optical grade 钽酸锂晶片（声表级/光学级）
Orientation 切型	X/Z/Y41°/Y64°/Y128°/YZ/YX or Customized 可定制	X112°/Y28°/Y36°/Y42°/YZ or Customized 可定制
Curie Temp 居里温度	1142°C±3°C	605°C±3°C
Doped with 掺杂	Zn, MgO single or double doped available	Fe
Single Domain 单筹	Completed Polarization/Reducted 完成极化/黑化

加工能力 processing capacity

Surface finish 表面处理	single or double sides polish (DLP/SLP/ SSP/DSP all available ) 单面抛光/双面抛光/单面研磨/双面研磨
Thickness 厚度	0.18/0.25/0.35/0.50/1.00 + mm	0.25/0.35/0.50/1.00+mm
TTV	< 1~5µm
BOW	± (25µm ~40um )
Warp	<= 35µm
LTV (5mmx5mm)	<1.5 um
PLTV(<0.5um)	≥98% (5mm*5mm) with 2mm edge excluded
Edge 边缘	Compl't with SEMI M1.2@with GC800# .regular at C typed
Orientation flats 定向平台	available, per request 根据要求定制
Polished side Ra 抛光面	Roughness Ra<=5A
Back Side Criteria 反面	Roughness Ra:0.5-1.0µm GC#1000
Edge Rounding 倒角	Compliant with SEMI M1.2 Standard/refer to IEC62276
Cracks, saw marks, stains	None
